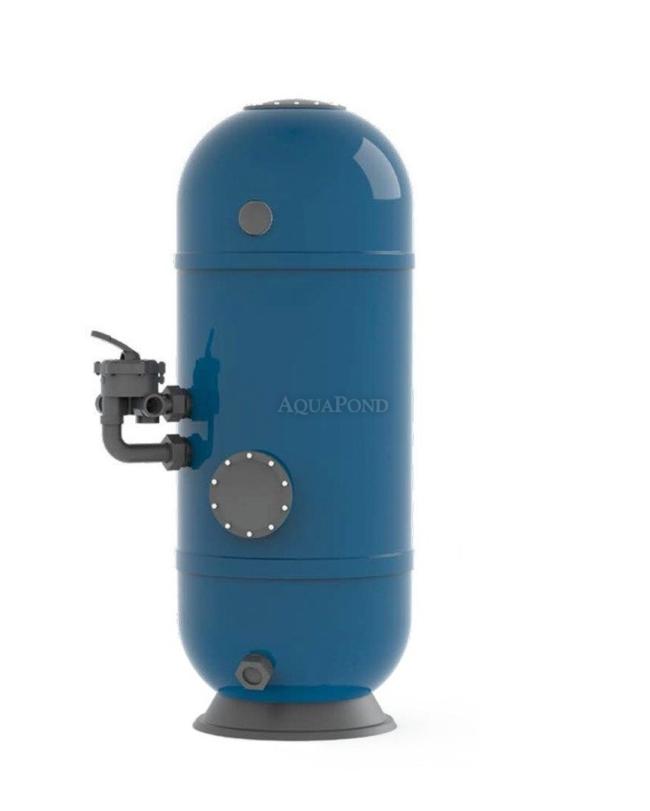

Filtration tank Barent 620 mm, flow rate 16 m3/h, six-way side valve
Filtration tank Barent 620 mm, flow rate 16 m3/h, six-way side valve
Description
Barent filter tank for private pools. The tank is made of fiberglass and is UV-resistant. Read more
-
Barent Filter Tank 620 mm, flow rate 16 m3/h, six-way side valve
Barent filter tank for private pools. The tank is made of fiberglass and is UV-resistant. Sand filters work on the natural principle of water filtration. Water passes through the layer of sand, which captures fine impurities. Over time, the sand becomes clogged and needs to be backwashed, which is what the six-way valve is used for. By turning the valve to the sand washing position, we reverse the direction of water flow and flush the trapped dirt into the waste line. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods.
Filtration
Filtration is part of the overall treatment of pool water. This means that the filtration system alone, without proper chemical water treatment, cannot ensure the required water parameters. Likewise, chemical water treatment alone is not sufficient without filtration.
Package Contents
- tank
- side 6-way valve
Principle of Filtration
Water is drawn by the pump from the bottom of the pool through the pool drain (1) and from the pool surface through skimmers /collectors/ (2), via the valve (3) into the filter (5), where it is cleaned. It is then pushed back into the pool through the recirculation nozzles (6). The nozzles are located on the opposite side from where the bottom drain and skimmers are installed. The filter itself contains a sand filling, which traps insoluble impurities contained in the water. After a certain period of filtration, the sand becomes clogged and water can no longer pass through it easily. It is therefore necessary to backwash the sand. Backwashing or rinsing is carried out by supplying water to the filter in the opposite direction to the filtration process.
Technical Specifications
- Product type: Reinforced fiberglass filter tank
- Tank material: Fiberglass
- Filling quantity: 500 kg
- Connection (int.): 2 "in
- Valve type: 6-way side
- Side opening: Yes
- Filter media: Sand, Zelbrite, zeolite, filter glass
- Filtration area: 0.3 m2
- Filter bed depth: 1.0 m
- Diameter: 620 mm
- Height: 1645 mm
- Weight: 60 kg
-
