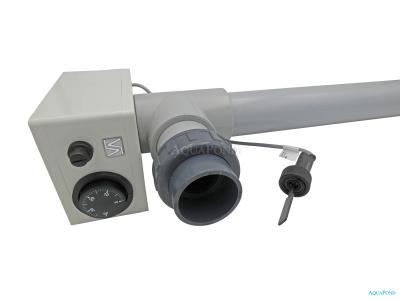

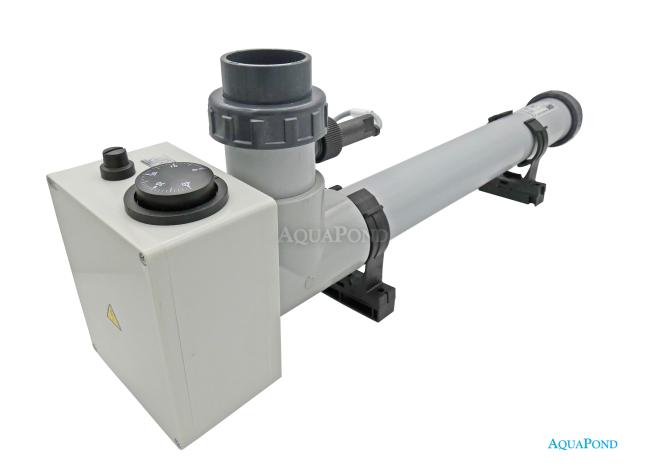

Electric heater EOVp-12, 12 kW, 400 V, plastic with electric flow flap
Electric heater EOVp-12, 12 kW, 400 V, plastic with electric flow flap
Description
The electric flow-through heater is designed for heating water in swimming pools and hot tubs. It works by heating the water as it flows through the heating element, and the temperature of the heated water ... Read more
-
Electric Heater EOVp-12, 12 kW, 400 V, Plastic with Electric Flow Flap
The electric flow heater is designed for heating water in swimming pools and hot tubs. It works by heating the flowing water through the heating element, with the water temperature set by a control thermostat. The heating element is switched by a contactor controlled by the thermostat mentioned above and a safety flow sensor. For this reason, the heater requires so-called “large automation” - a 24-hour filtration timer, residual current device (protection against dangerous touch voltage), motor thermal protection, contactor, and heater switch.
The EOVp pool electric flow water heater is specially designed for heating pool water or water in other water circuits with flow and temperatures up to 40 °C. The heater must be installed in the electrical system behind a residual current device. We therefore recommend supplementing the unit with a suitable type of automatic control. The difference between EOV and EOVp is the use of plastic for the heater housing itself and the use of a flow flap instead of a pressure switch as the water flow safety element.
Every EOVp electric heater:
- converts electrical energy into heat energy
- is made of high-quality PVC (EOVp type)
- has a heating cartridge made of stainless Incoloy 800, M1182 material, which guarantees the highest quality
- is 100% leak tested
- can be connected to the water circuit using 50 mm solvent welding
- is equipped with a thermostat up to 40 °C and a thermal fuse

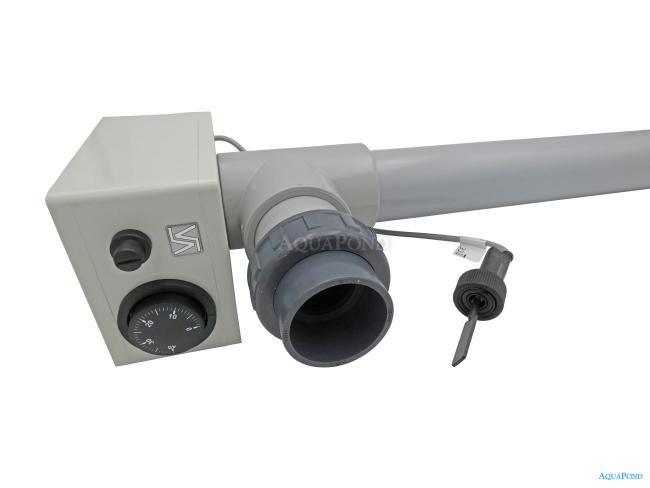

- is equipped with a flow switch that monitors water flow
- comes with 2 brackets for easy mounting
Use
- For heating indoor and outdoor pools
- For heating hot tubs
- For chlorinated water

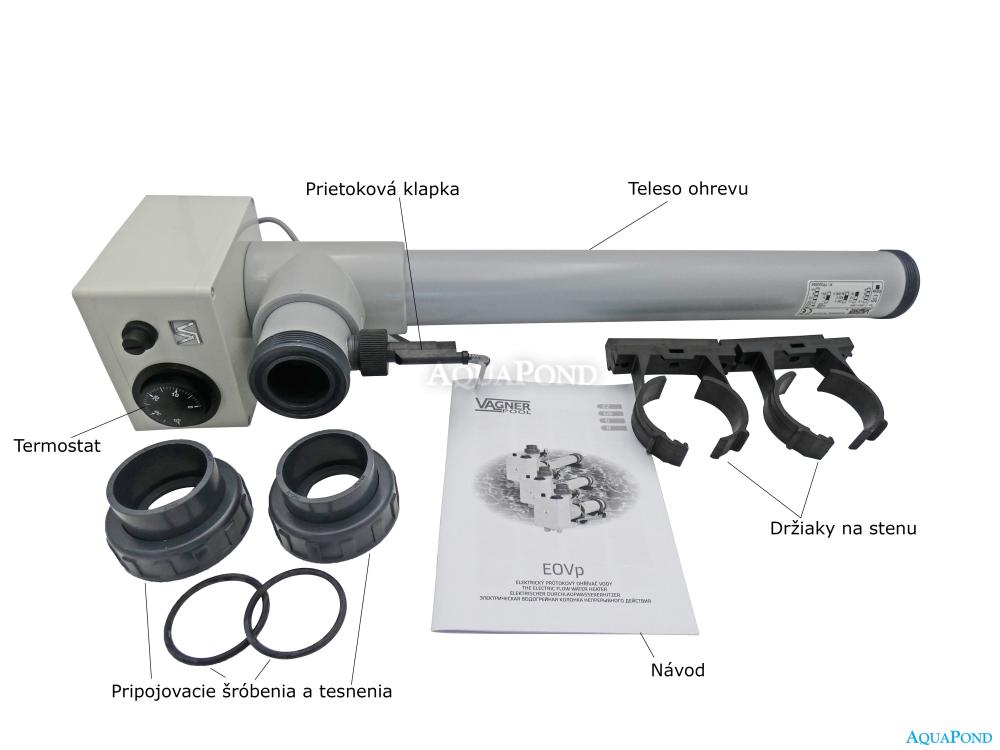

Package Contents
- Plastic heater body
- Internal electric heating coil
- Rotary thermostat for regulating water temperature up to 40°C
- Thermal fuse against heater overheating
- Flow flap against dry running
- 2 pieces of PVC 50 mm connecting fittings
- 2 wall brackets
Operating Principle of the Electric Heater
When the heater is switched on, electrical energy is consumed and
the titanium coil built into the long tube begins to generate heat.
The flowing water from the pool absorbs this heat and returns to the pool heated.

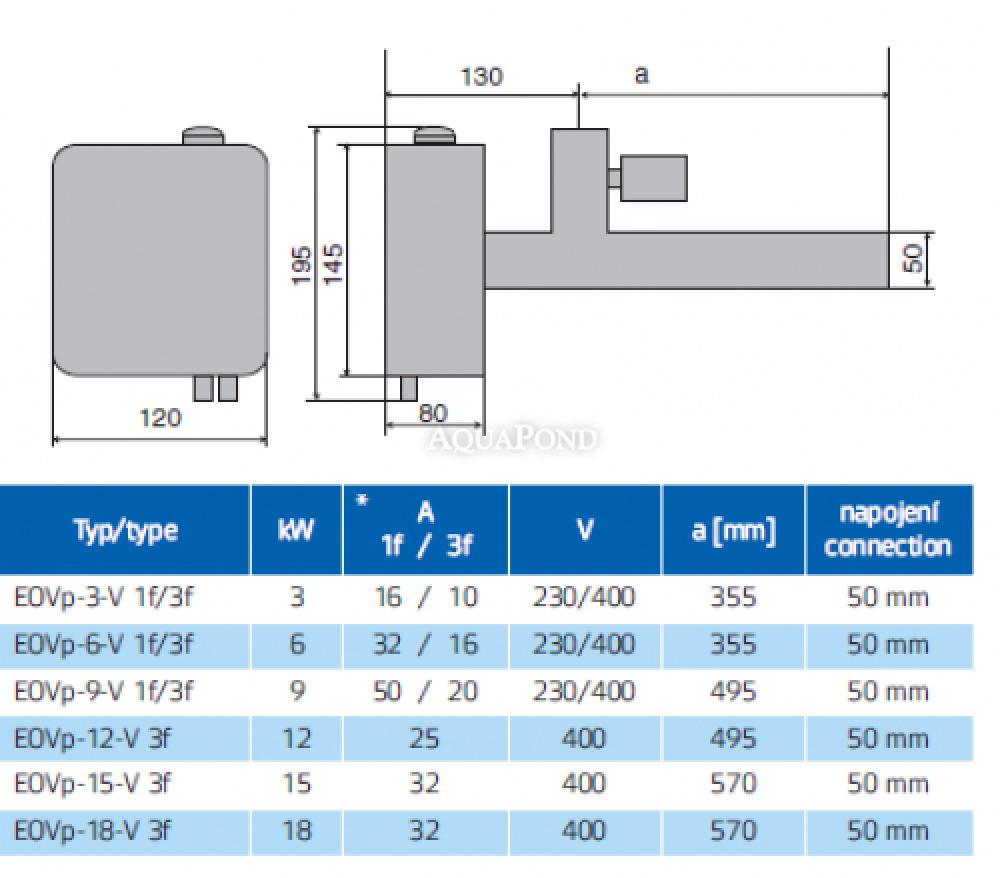

Technical Parameters
- Minimum water flow: 4 m3 / h
- Operating pressure: 0-3 bar
- Connection: to a water circuit with a pipe diameter of 50 mm
- Water quality: chloride content max. 150 mg / l
- Max chlorine content: 1 mg / l
- pH range: 7.0-7.8
- Operating temperature: 5 ~ 40 °C
- Weight: 3.3 kg
- Power supply voltage: 400 V
- Power: 12 kW
- Required protection: 25 A
Spare Parts List
The complete list of spare parts can be found here:
Spare parts for electric heater EOVp-12, 12kW, 400V, plastic with electric flow flap
-
