Filtration tank Astralpool Artic Ø 500 mm
Filtration tank Astralpool Artic Ø 500 mm
Description
Filter is made of polyester fiberglass, in ivory color. Read more
Product code: 34029CL11
-
Filter Tank Astralpool Artic Ø 500 mm
The filter is made of polyester fiberglass, in ivory color. Internal piping made of PVC and PP, EPDM gasket. Top filter lid Ø 200. Filter media height 1 m. Filtration is part of the overall pool water treatment process. This means that the filtration system alone, without proper chemical water treatment, cannot ensure the required water parameters. Likewise, chemical water treatment on its own is not sufficient without filtration.
Artic filters are standardly supplied with collector arms; from diameter Ø 650, a version
with a false bottom can also be ordered.Side 6-way valve and filter media are not included in the delivery.
Package Contents
- filter tank
- pressure gauge
- manual air release valve
- drain plug

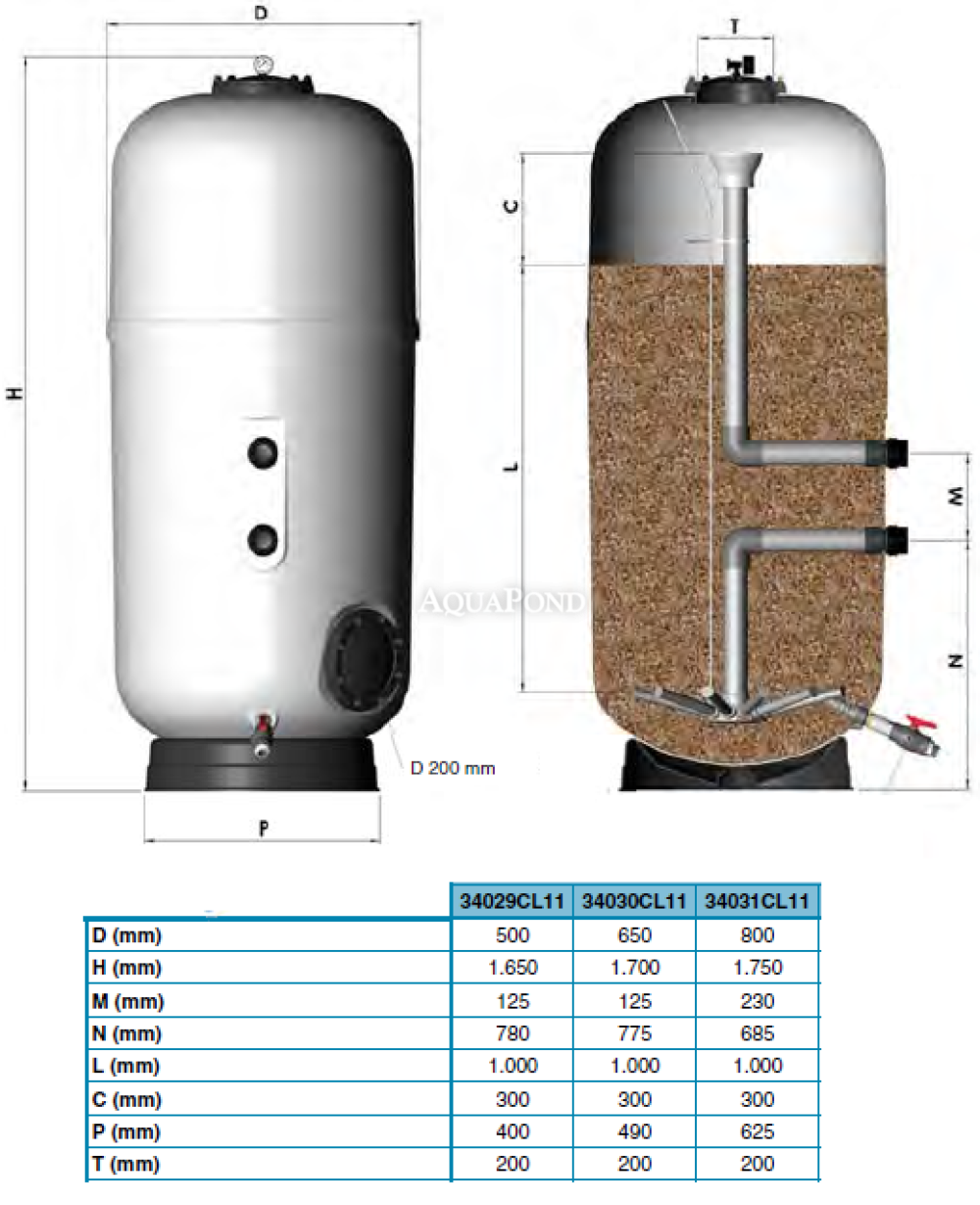

Technical Parameters
- Recommended pool volume: up to 80 m3
- Tank diameter: 500 mm
- Tank height: 1650 mm
- Top filter lid: Ø 200 mm
- Max. water temperature: 50°C
- Weight without sand: 70 kg
- Flow rate: 9.5 m3 / h
- 6-way valve connection: 1½˝
- Filter area: 0.19 m2
- Filter sand required: 275 kg
- Maximum pressure: 2.5 kg / cm2
-
